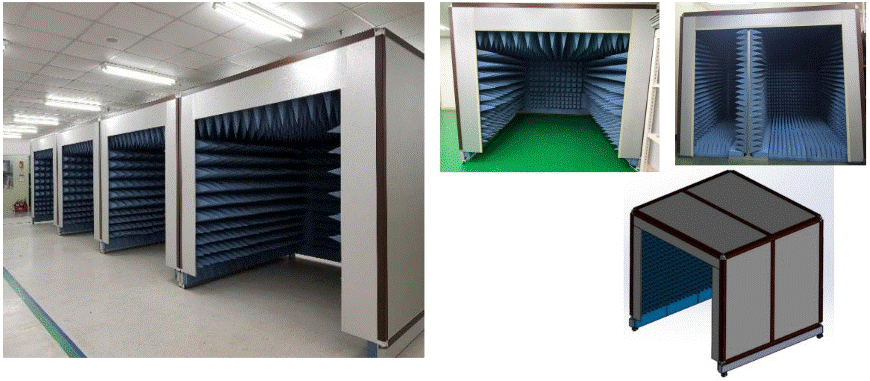

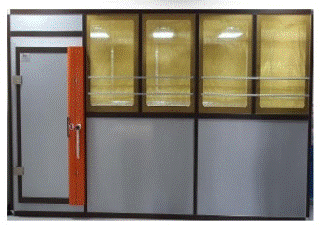

KSS Shield Room

KSS Shield Room

• Various depends on User’s request : : Size Door(Manual / Semi-Auto / Auto) and etc
• RF Shield Performance : > 90dB
• Mesh Type(Recommended) : manufacturing by using Bronze Mesh on both particle board.
• Panel Type : made by bracket and bolts on pressing galvanized steel of both particle board.



Features

• Universal Use
• Panel made by pressing galvanized steel on both particle board
• The assembly to fit the needs of users using bracket and bolts
• Very rugged, easy to assemble for moving installation
• Very good for Electromagnetic shielding
• Considering exterior design by attaching color vinyl sheet in internal/external of product.
• Shielding Coverage
  14KHz▶60dB(m-field)
  200KHz▶100db(m-field)
  200KHz~30MHz▶100~120dB
  30MHz~18GHz▶90~110dB
• Application : CE, CS Test
