2D & 3D Automated Mobile Phone Measurement System

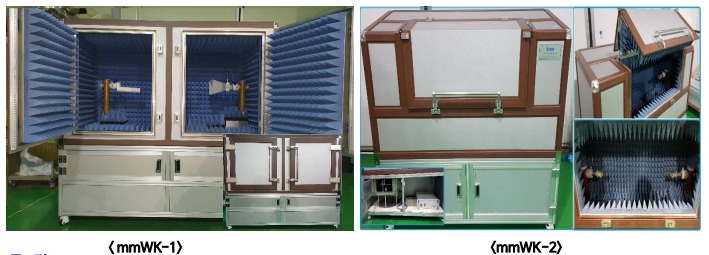

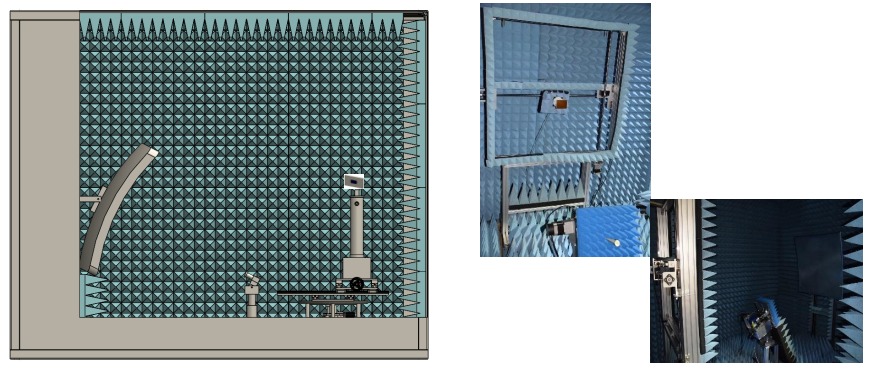

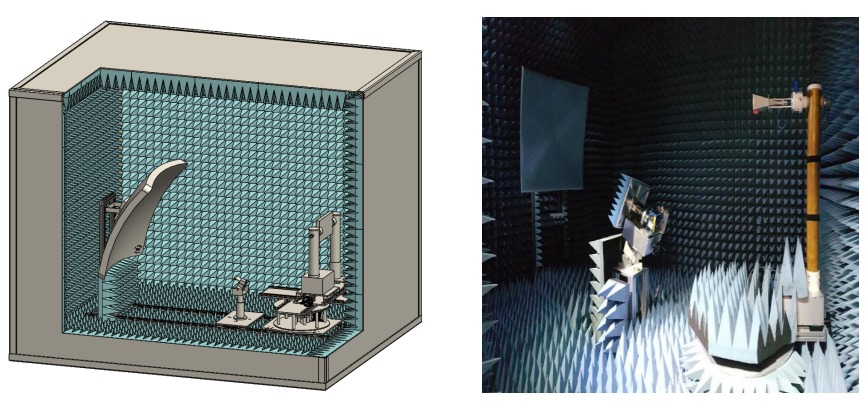

| 3DmmWK | 3DmmWK-1 |
|---|---|

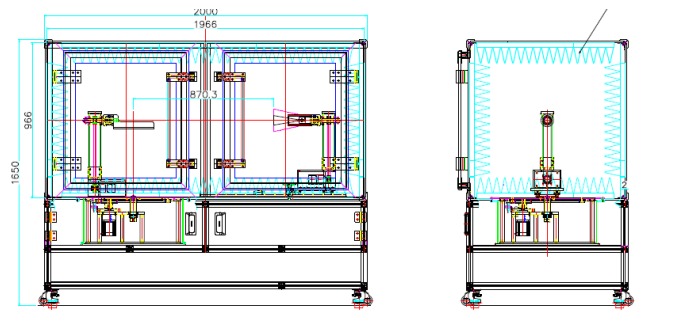

| 2.0 x 1.0 x 1.6m(H) | 1.8 X 0.8 X 1.4m(H) |
| Broadband Double-Rigid Gain Horn Antenna Freq. Bands _ Antenna1 _ 700MHz~6GHz / Antenna2 _ 26GHz~40GHz |
|
| Rotator Controller : High-speed Rotator controller with PCU Control of each Rotator in automated Active measurement systems |
|
| R.F Shielding Performance (MIL-STD-285) 800㎒~6GHz : 90±10㏈ / 40 GHz : 60±5 dB |
|
| Double Door(Manual Open/Close method) | Opened Door(Up-and-Down method) |
| Filters : Power Filters 220V, 60㎐ / Power Consumption : 1.5 kW (220 V) | |
| Max Weight of AUT : 30kg (Jig 형태에 따라 달라짐) | |
| Jig Material Information (General type) Dielectric Constant : 0.0135 @ 26.5GHz Density : 52kg/m3 Heat Distortion : 1800C Compressive : 130psi Strength |
|

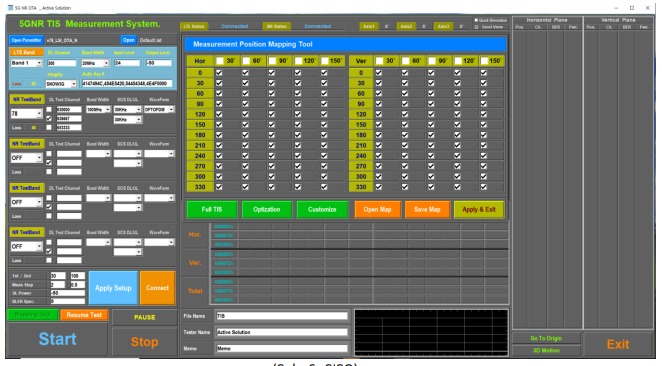

| 5” Pyramidal absorber use of KSS | |
| Signal Connector Panel: 1set (고객의 요구시, W/G Pipe Penetration 가능) | |
| System Controller : Latest Version / OS : windows 10 / LED Monitor RS232 Interface (includes GPIB Card & Cable) |
|
| Low Loss RF Cable Set(DC to 18GHz or 40GHz) | |
