Our Walkway Absorber is provided for installation in Anechoic chambers where it is necessary for personnel to walk for example from the door to the antenna and or test object.
Our Walkway Absorber is provided for installation in Anechoic chambers where it is necessary for personnel to walk for example from the door to the antenna and or test object.

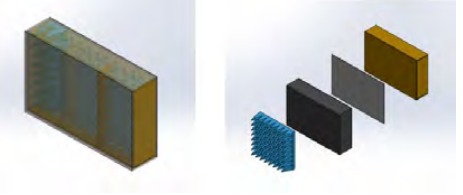

Conventional Pyramidal RF Absorber is in-filled with a dielectric material to provide a flat surface for walking.
Due to material content other than the pyramidal absorber used to produce Walkway Absorber the reflectivity of the absorber is reduced. The quantity of Walkway Absorber and positioning on the chamber floor can therefore be very important. Walkway absorber should be limited to the area leading from the door entrance directly to the antenna and object under test at each end of the chamber. This is preferable to walkways along the length of the chamber. The walkway should not be placed on critical regions of the floor.
Where necessary it may be better to use conventional absorbers only and remove and replace them only as necessary.
The base size is generally 600 x 600 mm and the height approximately higher a little more than the equivalent conventional Pyramidal Absorber.
